Infinity Binocular Trinocular Metallurgical Optical Microscope A13.2700

Name: Infinity Binocular Trinocular Metallurgical Optical Microscope A132700
Brand: CNOEC, OPTO-EDU
Price: 1 USD

Wholesale Infinity Binocular Trinocular Metallurgical Optical Microscope A13.2700 from china suppliers

Brand Name : CNOEC, OPTO-EDU

Model Number : A13.2700

Certification : CE|Rohs

Place of Origin : China

MOQ : 1 pc

Price : FOB $1~1000, Depend on Order Quantity

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Delivery Time : 5~20 Days

Packaging Details : Carton Packing, For Export Transportation

application : Learning|Metallurgical

Drawtube : Binocular

Illumination : Halogen

magnification : 100X - 800X

Theory : Metallurgical Optical Microscope

Contact Now

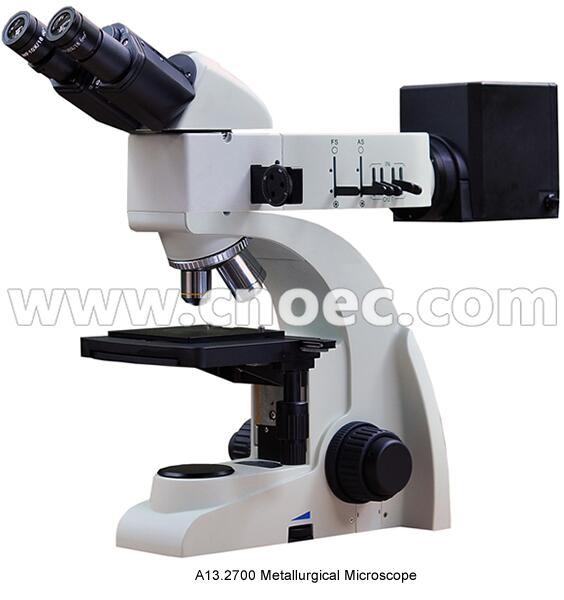

Infinity Binocular Trinocular Metallurgical Optical Microscope A13.2700

Description:

A13.2700 Metallurgical Microscope, with flexible system, excellent imaging performance and stable system achritecure. It is professional used in industrial testing and metallographic analysis. The operating mechanism according to ergonomic design. That can maximum reduce fatigue during using. Modular component design can freely assemble.

--Variety of Observation Methods To Have Sharp and High Contrast Microscopic Image
--Accessories Complete, Well Equipped, The System Can be Flexibly Combined
--Ergonomic Design, Reliable System Architecture

Specification	---------------A13.2700-A ----------------------------------------A13.2700-B------------------
Head	Binocular Head,30° Inclined, 360° Rotatable, Interpupillary Distance 52-75mm, ±5 Diopter Adjustment	Trinocular Head,30° Inclined, 360° Rotatable, Interpupillary Distance 52-75mm, ±5 Diopter Adjustment
Eyepiece	Plan WF10x/18mm, High Eyepoint Up To 21mm
Objective	Infinity LWD Plan Achromatic Objective 10x, 20x(S), 50x/(S),80x (S)
Focus System	Low Positioned, Coaxial Coarse & Fine Focusing System With An Adjustable Tension Control And Upper Limit Stop, Coarse 14mm/Rot, Fine 0.1mm/Rot, Minimum Reading 1mm On Left-Side Fine Knob, Moving Range 20mm
Nosepiece	Quadruple,Reversed Type With Positive Click Stops
Stage	Mmechanical Stage (For Refected Illumination), Size 142x135mm, Moving Range 76x52mm. Low Position, Right Hand Control, X-Y Coaxial Control Knob
Polarization	With Polarizer (Reflected) & Analizer
Illumination	Reflected, Halogen 12V50W, With Polarizer & Analizer
Power Supply	100-240V Wide Power Range, CE certified
Adapter		1x C-Mount
A12.2700 Metallurgical Microscope Optional Accessories			Item No.
Head	Binocular Head,30° Inclined, 360° Rotatable, Interpupillary Distance 48-75mm, ±5 Diopter Adjustment		A53.2702-3A
Head	Trinocular Head,30° Inclined, 360° Rotatable, Interpupillary Distance 48-75mm, ±5 Diopter Adjustment		A53.2704-3A
Eyepiece	WF10x/20mm, Plan, High Eyepoint Up To 21mm		A51.2701-10B
	WF16x/13mm,Plan		A51.2701-1613
	WF10x/18mm, Plan, With Pointer		A51.2702-10
	WF10x/18mm Plan, Reticule Eyepiece		A51.2703-10
Objective	Infinity LWD Plan Achromatic 5x		A5M.2731-05
Nosepiece	Upgrade To Quintuple,Reversed Type With Positive Click Stops		A54.2705-A1
Adapter	1.0x C-Mount		A55.2701-10
	0.5x C-Mount		A55.2701-05
	0.25x C-Mount		A55.2701-25
	For Digital Eyepiece (To Be Used On Trinocular Tube)		A55.2701-8
	Digital Camera Adapter, (Need To Know Camera Model)		A55.2702-2

Infinity Binocular Trinocular Metallurgical Optical Microscope A13.2700

Product Tags:

reflected light microscope

bright field microscope
